HushLay Wall Board

Hushlay Wallboard Plus 30

Suitable for:

  • domestic
  • residential
  • industrial
  • education
  • healthcare
  • leisure

Hushlay Wallboard Plus 30 is a high performing, unique four layer designed, acoustic wall product, that has been designed to reduce airborne noise through walls.

The make up of the product consists of two high performing deadening sheets, sandwiched either side of a frequency tuned resilient layer, finished with a high mass gypsum plasterboard. All four layers help the product perform to very high levels when reducing airborne sound through a wall structure. A combination of high mass and separation is
needed to improve airborne performance.

For advice on the use of Hushlay Wallboard Plus 30, as part of a system within any project, please contact our experienced technical team on 0151 933 2026 who will be happy to give comprehensive and practical advice to meet with your requirements.

Test Data

Building Regulations Standards of Approved Document E (England & Wales), Section 5 (Scotland) and Part G (Northern Ireland) can be achieved with the Hushlay Wallboard Plus 30. In certain applications additional treatment may be required, including Hush Resilient Bars, Hush Slab Sound Absorber and additional boarding. These applications to be discussed with the Hush Technical Team.

Product Data

When used in the correct applications, Hushlay Wallboard Plus 30 can be applied to masonry, timber and metal wall constructions.

Size and Weight:

  • Each board measures 1200mm x 1200mm and is 30mm thick.
  • Each board weighs 43.2kg, translating to 30kg per square meter.

Construction:

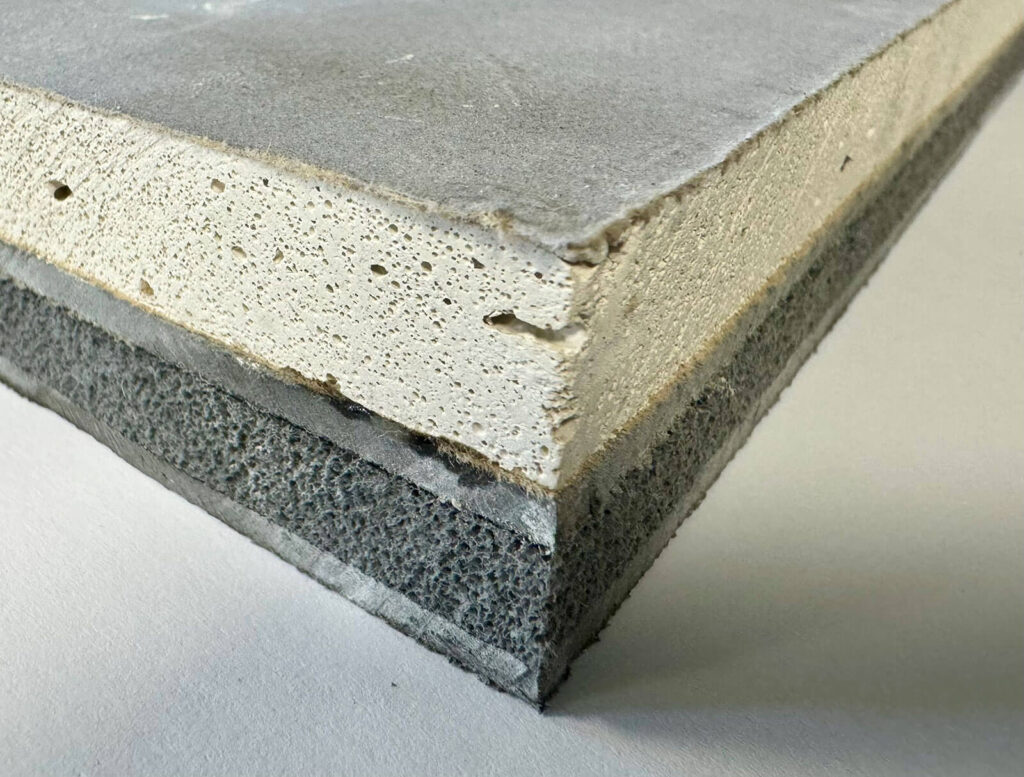

The wallboard is made up of four layers:

  • Two high-performance sound-deadening sheets.
  • A resilient layer designed to tune frequencies.
  • A high-mass gypsum acoustic plasterboard.
the Hush Hushlay Wallboard Plus 30 is an advanced wallboard that excels at soundproofing, making it an excellent choice for anyone looking to reduce noise transmission in various building types.
  • Building Regulations Part E (England and Wales), Section 5 (Scotland)and Part G (Northern Ireland)
  • Improves airborne sound insulation.
  • Can be easily cut on site with correct circular saw.
  • Suitable to be applied to masonry, timber stud and metal stud wall structures.
  • Improved performance can be achieved with the Hushlay Wallboard Plus by incorporating Hush Resilient Bars, Hush Slab Sound Absorber and additional boarding.

It can be applied to masonry (brick or concrete), timber, and metal wall structures.

Suitable for use in residential and commercial buildings, ensuring compliance with Building Regulations in the UK (Approved Document E, Section 5 for Scotland, Part G for Northern Ireland).

Additional Enhancements:

Improved performance can be achieved by using additional components like Hush Resilient Bars and Hush Slab Sound Absorbers.
It can be easily cut on-site using a circular saw for large-scale installations

Storage:

Boards must be stored flat and kept dry, ideally only on a dry and sealed site.

Full fitting instructions are supplied with all products and are available to download from the Installation Guides section.

Should you have any technical questions prior to or during installation, please call 0151 933 2026 for friendly and straightforward advice.
